PRT2012NA2

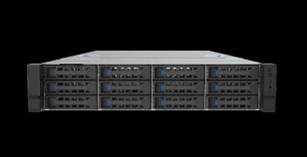

AMD platform 2U dual-socket server PR2012AM2 series, the parameters are as follows: 1) Appearance: 2U rack type; 2) Disk: front 12 2.5-inch/3.5-inch hot-swappable disks (support SATA/SAS interface, 4 of them The disk supports NVMe U.2 interface at the same time; the rear supports two 2.5-inch disks; 3) Processor: supports 2 AMD 7002/7003 series processors, and supports CPU TDP up to 280W; 4) Memory: 32 DDR4 RDIMMs Memory slot, the maximum memory capacity of the system supports 8TB (only 16 DIMMs are supported when only 1 CPU is installed); 5) PCIE expansion: provide 4 PCIE 4.0 X16, 2 PCIE 4.0 X8 interfaces (when only 1 CPU is installed, Some PCIE slots are not available), the board supports 1 M.2 interface; 6) RAID support: optional SAS card/RAID card, support RAID 0/1/5/6/10/50/607) GPU support: Maximum support for 2 double-width GPU cards; 8) Network: Onboard Gigabit electrical port*2; 9) Management: IPMI management port*1, supporting iKVM remote management; 10) Power supply: 1600W redundant 1+1 power supply; 11) Others : Standard configuration includes hard disk bracket and guide rail kit;..
