Powerful dual-channel edge server PR2530P

Call for Price

Categories: , ,

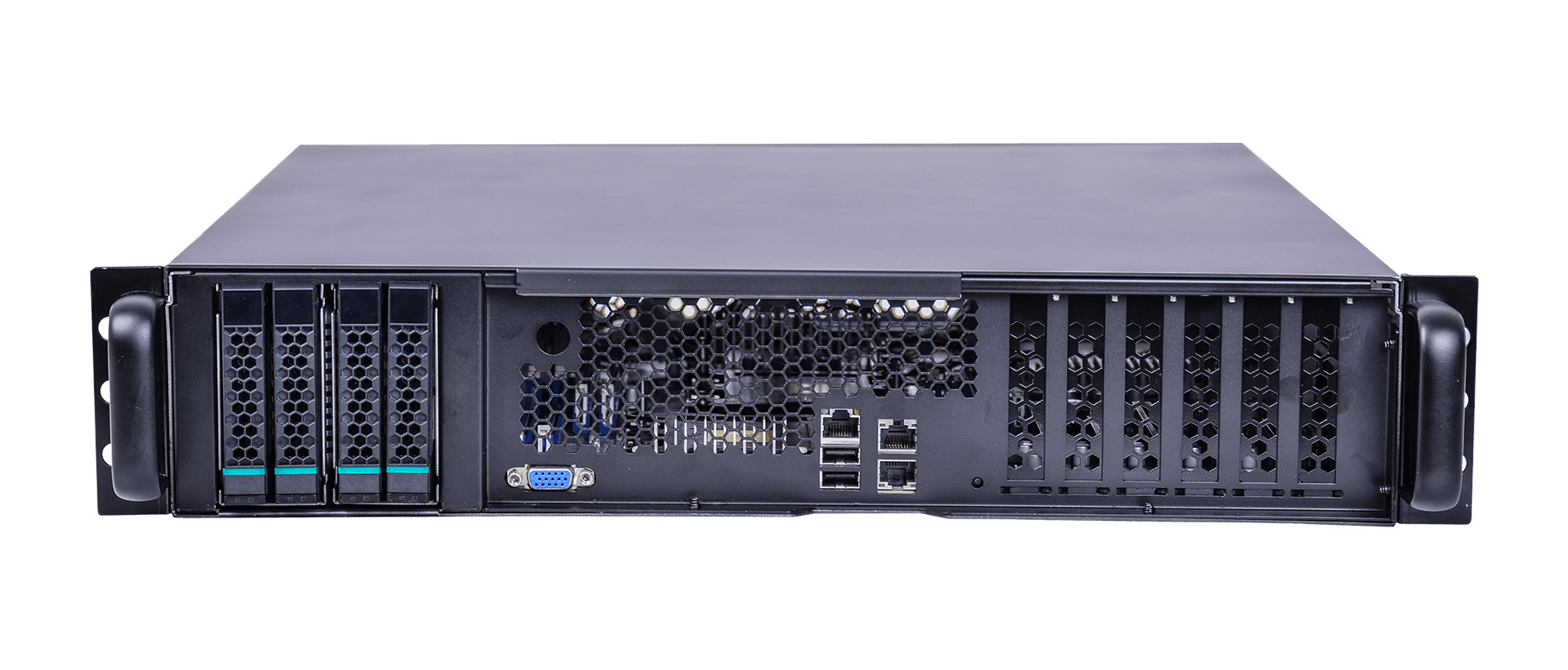

Boyd PR2530P is the latest 2U edge server product launched by Boyd. It uses Intel C621 high-performance chipset and supports the second generation Intel® Xeon® Scalable series processors. This model supports a maximum memory capacity of 1TB. Supports four hot-swappable 2.5-inch hard drives and can flexibly expand half-height and full-length PCI-E devices. The highly integrated design brings powerful performance in a limited space, which is enough to support the operation of critical tasks. PR2530P provides advanced management functions and storage technology, with reliable scalability and high availability.

high performance

It supports up to two 22-core second-generation Intel® Xeon® Scalable series processors, which can provide powerful computing capabilities and help users cope with heavy computing pressure.

Supports Intel® Communication Acceleration Technology (Intel® QAT), Intel® Advanced Vector Extensions (Intel® AVX-512).

8 memory channels, 8 memory DIMM slots, supporting up to 1TB 2933MHz/DDR4.

Full support for M.2 and SD card support.

6 expansion slots provide users with flexible connection options.

There are 2 onboard Gigabit data network ports with load balancing, link aggregation and redundancy features, which can effectively reduce network delays, and 1 1000M dedicated network port for remote management.

High reliability

Supports up to 4 hot-swappable 2.5” SATA/SAS/SSD hard drives. (SAS hard drives require an optional SAS expansion kit)

Adopting an industrial server structure design, it is suitable for edge computing applications in simple environments in terms of high temperature resistance, dust resistance, and earthquake resistance.

The intelligent cooling system is adopted to ensure long-term stable operation of the server in high-temperature environments, effectively reduce noise pollution, and create a constant temperature space in the box; it is fully shielded against electromagnetic radiation, anti-interference, and anti-static (EMI) design.

Supporting Intel® Communication Acceleration Technology (Intel® QAT) provides secure high performance and accelerated compression, enabling network, cloud services and storage functions to provide reliable protection for virtual and cloud environments.

It can optionally support 1+1 fully redundant power supply mode, support PMBUS power consumption monitoring, module loss alarm and other functions, providing higher security for the operation safety of the server.

Low power consumption

Supports frequency reduction function to reduce system energy consumption at low load.

Comprehensive adjustment of fan speed based on the temperature of key thermal components saves energy while reducing noise and improving fan reliability.

Supports PDCM v2.0 (Power Efficiency Manager) to provide automated server power consumption control, helping to complete more tasks with fewer resources.

Technical specifications

characteristic PR2530P Technical Specifications
form 2U rack server
Number of processors 1/2 piece
Processor model 2nd Generation Intel® Xeon® Scalable Processor Series
Memory 8 DIMM slots, supports 2933MHz DDR4 RDIMM memory, up to 1TB
harddisk Prefix:

Supports four 2.5-inch SAS/SATA/SSD hard drives

built-in:

1 PCI-E M.2 SSD
Raid support Support SATA RAID0, 1, 10, 5,

Optional support for SAS RAID0, 1, 10, 5, 50, 6, 60, etc., RAID no cache/1GB/2GB cache,

Optional cache power-down protection
Onboard network Integrated 2 Intel x722 Gigabit GE network ports; optional external Gigabit and 10 Gigabit network cards
PCIE extension Provides 6 front half-height PCI-E expansion slots (3*PCI-E3.0x8, 2*PCI-E 3.0×16, 1*PCI-E 3.0×4(inx8))
Other ports USB2.0 interface: 2 (2 on the front)

USB3.0 interface: 1 (1 internal)

VGA interface: 1 (1 on the front)

Management network port: 1 (1 on the front)
fan 3 hot-swappable fans
power supply Standard configuration: 1 550W platinum AC power supply module; supports 1+0 single power supply mode, or 1+1 redundant power supply mode; optional 550W/800W platinum AC power supply module supports 240V high-voltage DC power supply; and optional 800W DC power supply -48V power module
manage Supports IPMI2.0, provides a 100/1000 Mbps RJ45 management network port, integrates iKVM, and supports remote management
display controller Integrated ASPEED AST2500
CD-ROM/drive Optional USB interface optical drive and SD card
Supported operating systems Windows Server 2012 R2

Red Hat* Enterprise Advanced Server 7.5
powered by 220V AC/240V DC
physical size Height 88mm*Width 438mm*Depth 450mm, minimum configuration gross weight is about 17KG
environment and regulations
ambient temperature 5℃ to 40℃ during operation

-40°C to +55°C ambient environment when not in operation
Relative humidity 95% non-operating, non-condensing at 25°C to 30°C
noise In operation mode, the sound pressure measured in the side position is <50dBA; the sound intensity measured when the ambient temperature is <28°C is 6.2BA
Electrostatic discharge Per Intel Ambient Temperature Test Specification 15KV
Safety Standards (China) CCC
