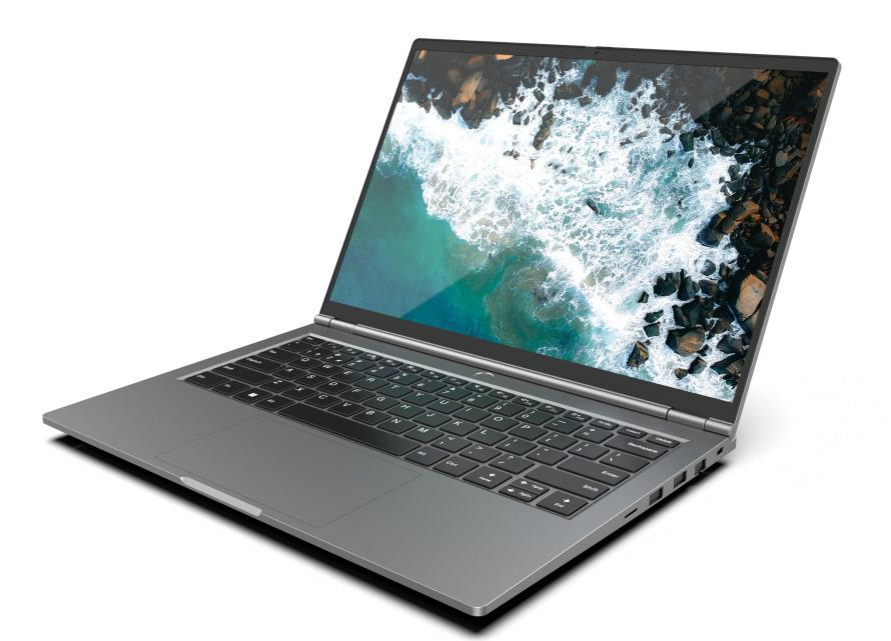

PN150W1 Notebook

Call for Price

Category:

Baode Ziqiang PN150W1 is an intelligent computing notebook product developed based on the Pangu M900 processor. It supports domestic software and hardware products and protects users’ private data and information. It can not only meet the needs of government agencies and party and government departments, but also can easily cope with various commercial office environments.

download file
High Availability

The appearance design is simple and fashionable, with an all-metal body, exquisite and lightweight structure, fashionable and thin, and extraordinary temperament.

All-metal integrated body and sandblasting anodizing process,

The touch is delicate and silky, and the quality is outstanding;

Extremely slim, the weight of a single unit is less than 1.5kg.

With an ultra-narrow bezel 14-inch full HD display,

high performance

Based on Pangu M900 8-core high-performance general-purpose microprocessor, main frequency 2.3GHz

14-inch 1920*1200 HD display

Strong expansion capability, supporting multiple expansion interfaces

Safe and reliable

Support domestic independent security BIOS

Hardware localization

UOS/Kirin domestic desktop operating system

Support biometric technology, fingerprint module to enhance security

Technical specifications

project PN150W1 Technical Specifications
CPU HiSilicon Panu M900, 8 cores, 2.3GHz, 18W
Dimensions 312mm(W)×220.7mm(D)×16.95±0.5mm(H)
weight 1430±30g
Materials/Process Material: ACD surface aluminum alloy, process: sandblasting + anodizing
color Blue Flame Gray
Machine function  Supports one-handed opening and closing, 180° opening and closing, opening the cover to start the device, and light sensitivity adjustment function
Graphics The CPU integrates Mali-G52 MC6 graphics card, and the maximum video memory capacity is shared with 2G system memory
Memory On-board LPDDR4X chips, optional 8GB, 16GB.
Display 14.0 inches, 16:10, standard WUXGA 1920*1200, compatible with 2.2k
storage 1 x M.2 2280 solid state drive, standard 256GB PCIE, maximum support 1TB
trumpet Built-in 2x 2W stereo speakers
Camera Camera *1, standard 720P, support 1080P, with physical shielding
IO interface 1 x Type-C (supports PD charging);

1 x Type-C (supports DP1.2 display/USB3.1 Gen1 data transmission/external 5V 3A power supply);

1 x Type-C, supports USB3.1 Gen1 data transmission/external 5V 3A power supply;

1 x physical toggle switch for camera, mic, wifi;

1 x HDMI 2.0; 1 x Audio (3.5mm); 1x security lock;

1 x standard RJ45 10M/100M/1000M adaptive Ethernet port;

2 x USB 3.1 Gen1 (supports 1x shutdown external 1.5A power supply)
Wireless network card Board mounted WiFi module, dual-band 2.4&5G, dual antenna design, standard WiFi5,

Compatible with WiFi6, BT5.2 (WIFI6 only)
keyboard 80 keys, with white backlight, supports three-level backlight adjustment, splash-proof
Touchpad Standard Mylar material, compatible with glass design, 120X70mm, I2C protocol,

Support multi-touch, with function to prevent accidental touch
Power Adapter AC 100～240V, adaptive Type-C charging protocol, 65W
Battery 65Wh intelligent large-capacity lithium-ion polymer battery
Heat dissipation Single-sided fan, single heat pipe design
safety equipment Biometric fingerprint recognition, in compliance with Ministry of Public Security certification, TCM (optional, not included by default)
