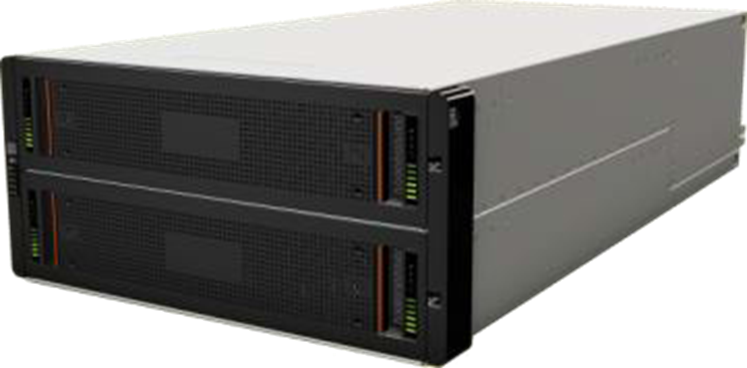

GS9184JD JBOD storage cabinet

Call for Price

GS9184JD is a platform with both large capacity and high performance in the data field, which can cope with extreme data growth needs.

Fast data transfer using 12Gb/s SAS interface

With a transfer speed of up to 12Gb/s and extreme capacity, it can meet the data transfer needs of applications anytime and anywhere; up to 14.4GB/s in a single I/O module and 28.8GB/s in a dual controller configuration. It can be expanded to up to 336 SSDs and hard drives without having to trade space for performance.

Provides a scalable and versatile architecture

The chassis leads the industry in density and performance-price ratio, minimizing the total cost of ownership, storing up to 1.1PB of data, and easily expandable through interchangeable FRUs and SBB 2.0 compatibility. The chassis is designed to be flexible, providing multiple supports and multiple functions, including management cables, universal ports, self-configuring controls, and standardized partitions, which also helps accelerate the introduction of new technologies to the market and greatly simplifies the deployment process of storage device development and testing.

Ensure applications can access critical data

Protect your data with troubleshooting, problem-solving features, continuous error logging and monitoring; while taking advantage of high-availability features such as dual PCM and I/O modules, and dual data paths to all hard drives to ensure the highest availability of your data.

Save costs and resources with energy-saving features

This chassis is suitable for high-capacity and transactional environments, meeting the strict requirements of service level agreements (SLAs), improving response speed and achieving optimal data utilization. It meets strict global recycling and environmental protection requirements, can minimize the impact on the environment, achieve cost savings with high efficiency, and reduce energy consumption through 80 PLUS Platinum certified adaptive cooling technology.

Built-in security features to protect data throughout its lifecycle

Protect your most valuable business assets with compatible hard drives.

Technical specifications

Specification GS9184JD JBOD
Controller Dual EBOD Storage Bridge (SBB) 2.1-compatible I/O modules per chassis
Host/Expansion Interface Three universal x 4 12Gb/sec Mini-SAS connectors (SFF-8644) per I/O module
Management/Status Reporting CLI via RS232 and 100Base-T ports, SCSI Enclosure Services (SES) via SAS SFF-8644 port
Maximum system configuration Dual host connected chassis, maximum expansion configuration is 4 chassis, can accommodate a total of 336 hard disks
Device Support Dual-port 12Gb/s SAS
Maximum number of hard disks per cabinet 84 (For a complete list of supported drives, please contact your account or sales manager)
Hot-swappable components Hard drives, power supply units (PSUs), cooling modules, side expanders, and SBB I/O modules
Physical specifications Height: 220 mm / 8.65 in (5 EIA units) | Width: 483 mm / 19 in (IEC rack compatible) | Depth: 933 mm / 36.75 in | Weight: 135 kg
Power Requirements – AC Input
Input power requirement 180VAC-240VAC, 50Hz/60Hz
Maximum power output per PSU 2200W
Ambient/Temperature Range
Operating/Non-operating altitude –100 m to 3000 m (–330 ft to 10,000 ft) / –100 m to 12,192 m (–330 ft to 40,000 ft)
Operating/non-operating temperature ASHRAE A2, 5°C to 35°C (41°F to 95°F), de-rated 1°C per 300m above 900m, maximum rate of change: 20°C/hour / –40°C to 70°C (–40°F to 158°F)
Operating/Non-operating humidity –12°C DP (10% RH) to 21°C DP (80% RH), DP max: 21°C / 5% to 100%, non-condensing
Running/non-running shock 5 Gs, 10 ms, half-sine pulse / 20 Gs, 10 ms, half-sine pulse
Operating/non-operating vibration 0.21 Gs rms (5-500Hz) / 1.04 Gs rms (2-200Hz)
