dual-socket server PR2280P

Call for Price

Categories: ,

The PowerLeader PR2280P is a 2U single-socket computing server product newly launched by PowerLeader Computing. It uses the Intel C621 high-performance chipset and supports the first/second generation Intel® Xeon® Scalable processors. This model supports up to 2TB of memory capacity, and comes standard with 8 3.5-inch/2.5-inch hot-swappable hard drives, and can flexibly expand full-height PCI-E devices. The highly integrated design brings strong performance in a limited space, which is enough to support the operation of critical tasks, meet the needs of streaming media applications, and meet various customized needs of customers.

PR2280P provides advanced management functions and storage technologies, with reliable scalability and high availability.

Download file
Super performance

Supports 1 1st/2nd Generation Intel® Xeon® Scalable Processor

Supports Intel® Turbo Boost Technology 2.0, Intel® Advanced Vector Extensions (Intel® AVX)

8 memory DIMM slots, supporting up to 2TB DDR4 2933MHz ECC RDIMM/LRDIMM

7 expansion slots: 2x PCIe3.0 x8 (in x16), 4x PCIe3.0 x8, 1xPCIe3.0x4 provide users with flexible and diverse optional accessories.

2 onboard RJ45 Gigabit data network ports with load balancing, link aggregation and redundancy support, which can effectively reduce network delays

Ultimate design

2U space, full machine performance, density, and scalability maximized design, suitable for multiple application scenarios such as Internet, security, and education

The ultimate system heat dissipation design and noise reduction design achieve high efficiency and energy saving, and low noise of the whole machine

Supports up to 1 NVME M.2 SSD, adopts CPU pass-through design to reduce I/O latency

Stable quality

Optional support for high-reliability RAID5 to improve data processing performance and protect data functions.

The intelligent heat dissipation system is used to effectively reduce noise pollution and create a constant temperature space in the box; it is fully shielded against electromagnetic radiation, anti-interference, and anti-static (EMI) design.

Support for Intel® Trusted Execution Technology (Intel® TXT) provides reliable protection for virtual and cloud environments.

Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) accelerates and enhances encryption capabilities for faster, stronger enterprise-wide data protection.

The standard configuration is a 350W single power supply, and the optional support for a 550W1+1 fully redundant power supply mode provides a higher level of security for the server’s operation.

Optional TPM2.0 encryption module to protect data security

Technical specifications

product name PR2280P
frame Standard 2U 19-inch
CPU Supports 1st/2nd Generation Intel® Xeon® Scalable Processor Family (TDP 165W)
chipset C621
Memory 8 memory DIMM slots, supporting up to 2TB DDR4 2933MHz ECC RDIMM/LRDIMM memory
harddisk There are 8 front 3.5-inch/2.5-inch hard drives, 1 built-in 3.5-inch hard drive, and an optional SAS expansion card to support SAS hard drives.
M.2 1 M.2 interface (PCI-E 3.0 x4), supports 2280/22110 specifications

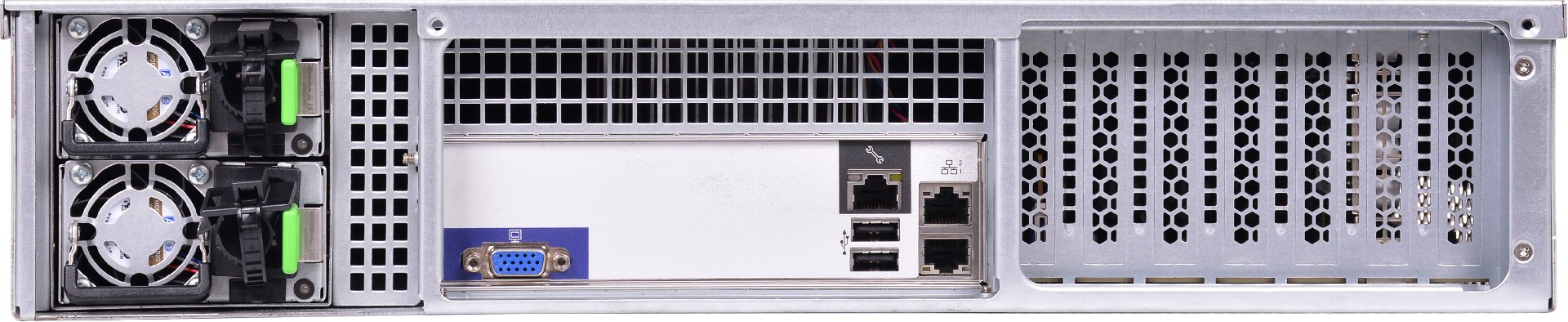

I/O Interface 2 RJ-45 network ports, located at the rear of the chassis

6 USB ports, 2 on the front and 4 on the back

1 VGA, 1 DVI,
1 IPMI management port
Network Card Onboard 2 RJ45 Gigabit data network ports; optional external Intel Gigabit and 10 Gigabit network cards
PCIe Expansion 2x PCIe 3.0 x8(in x16) ,4x PCIe3.0 x8，1xPCIe3.0x4
Graphics Optional half-height PCI-E X16 graphics card
power supply Standard 350W single power supply, 550W 1+1 redundant power supply
Optical Drive Optional USB interface thin optical drive
YOU Windows® ：Windows® 10 (64 bit)

Linux：

RedHat Enterprise Linux Server 7.6 (64 bit) and above (same as CentOS system)

Ubuntu 20.04 (64 bit) and above
Ambient temperature Operating temperature: 10℃ to 35℃

Non-operating -40°C to +70°C ambient temperature
Relative humidity Non-operating 95%, non-condensing at 25°C to 30°C
noise In the operating mode, the sound pressure measured at the side position is <50dBA; the sound intensity measured at an ambient temperature <28°C is 6.2BA
Electrostatic discharge Per Intel ambient temperature test specification 15KV
Safety Standards (China) CCC
