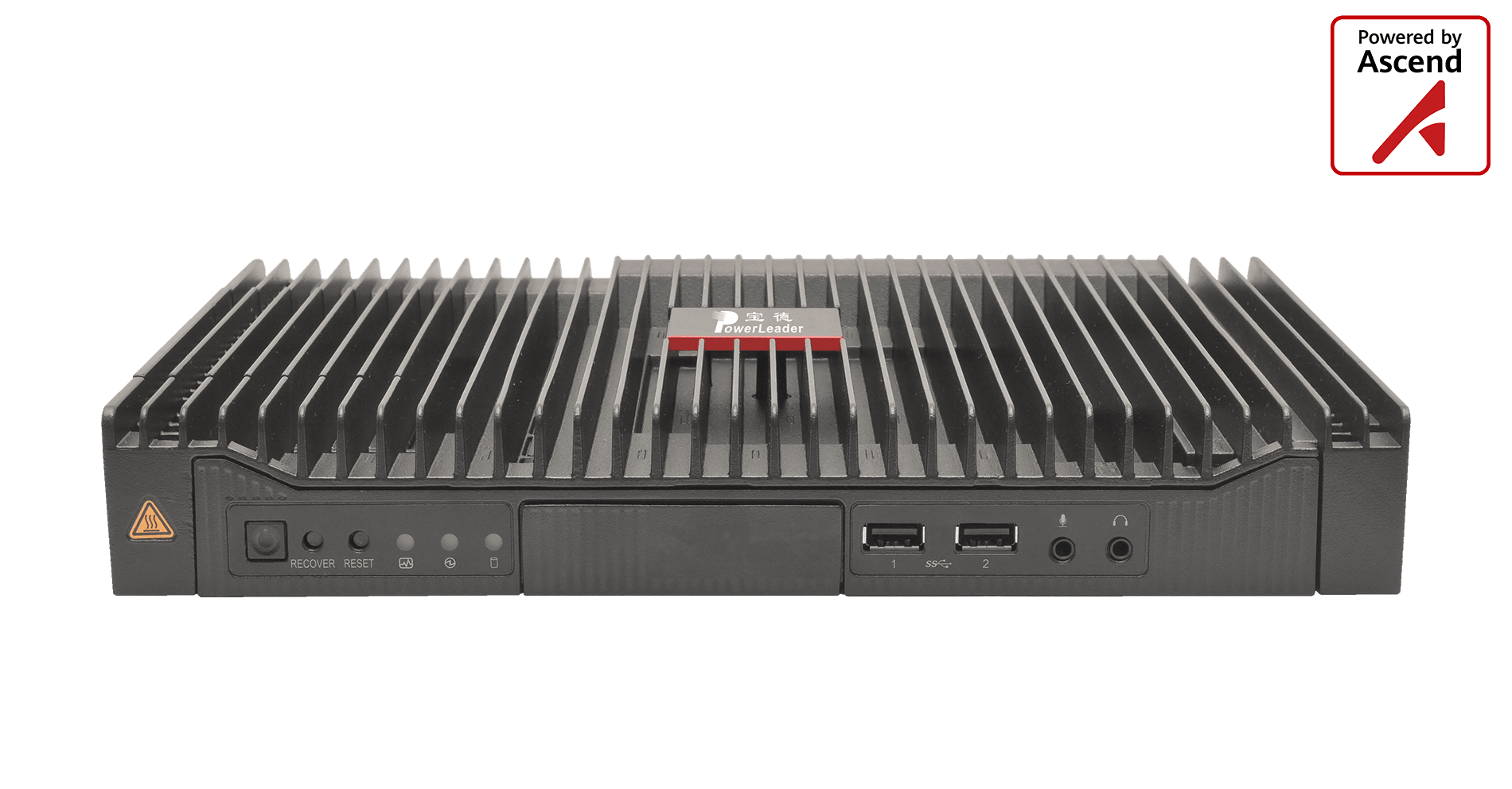

Baodeziqiang® Intelligent Station PI300T G2

Call for Price

Categories: , ,

PI300T G2 smart station is a product for edge applications. It has the characteristics of strong environmental adaptability, super computing performance, cloud-edge collaboration, etc. It can be widely deployed in edge environments to meet the needs of complex environments such as transportation, communities, parks, shopping malls, supermarkets, etc. regional application requirements.

download file
Strong environmental adaptability

Industry-leading edge products integrating AI processing capabilities

Fanless cooling, supports -40℃ to 60℃ outdoor operation

lProtection grade: IP40

Super computing performance

The size of the set-top box supports 20 TOPS INT8 computing power

Support 40 channels of 1080P 30FPS video analysis capabilities

Cloud-edge collaboration

Optional 4G or 5G module supports wireless transmission

Cloud-edge collaboration, model remote automatic update

Device management and firmware upgrades can be unified in the cloud

Technical specifications

model PI300T G2
AI computing power 20 TOPS INT8

10TFLOPS FP16
Memory specifications LPDDR4X, 12 GB, total bandwidth 51.2 GB/s

Support ECC
CPU computing power 4core*1.6GHz
Codec capabilities Support H.264/H.265 hardware decoding, 40 channels 1080P 30FPS,

4-channel 4K 75FPS, YUV420

Support H.264/H.265 hardware encoding, 20 channels 1080P 30FPS,

3-way 4K 50FPS, YUV420

JPEG decoding 1080P 512 FPS, encoding 1080P 256FPS,

The maximum resolution is 16384 x 16384 and the minimum is 32 x 32

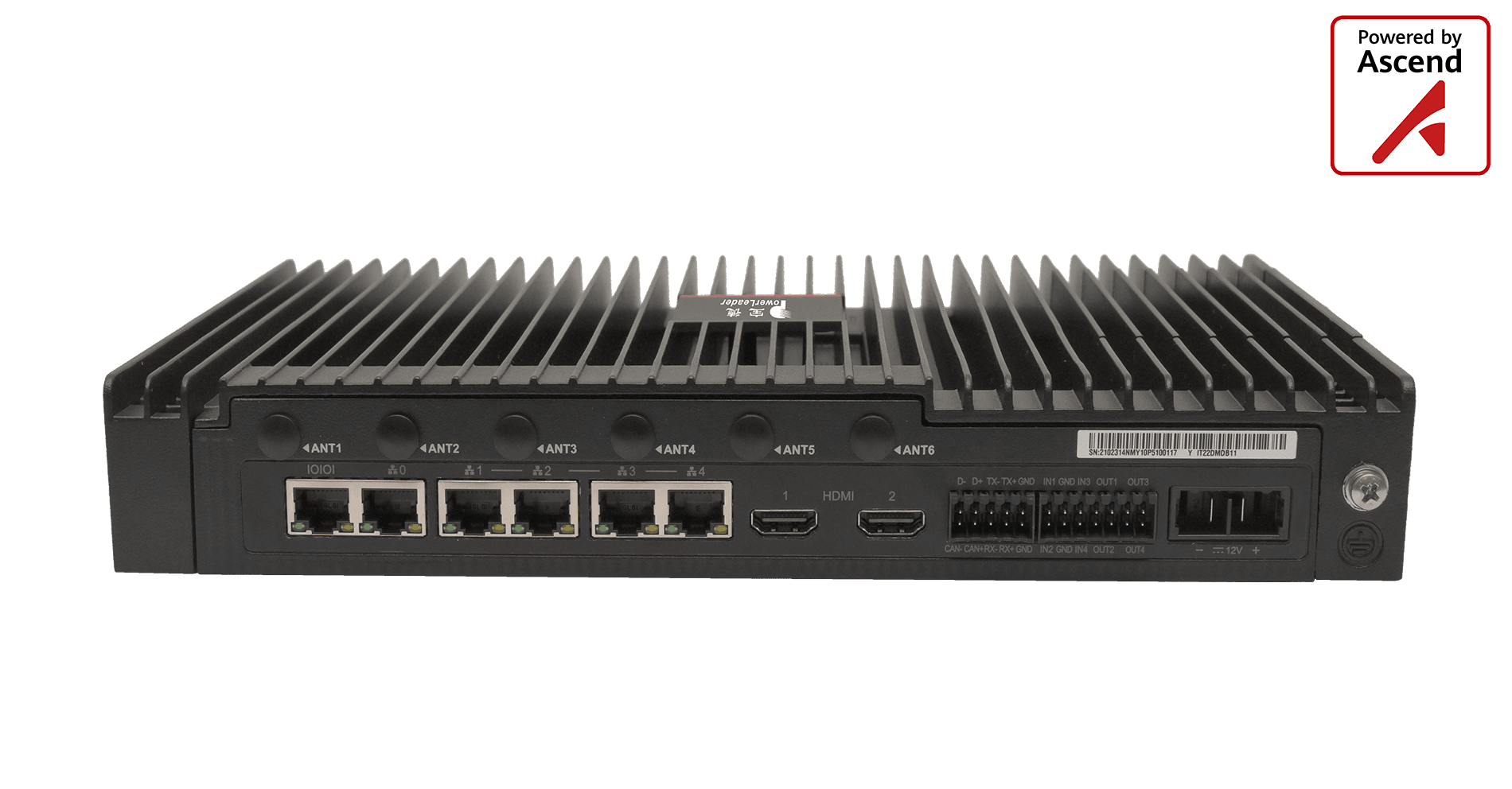

Expand interface 1 uplink and 4 downlink GE RJ45, supporting adaptive 100/1000M

2 HDMI interfaces

1 pair of 3.5 mm stereo input and output interfaces

2 external and 1 internal USB3.0 interface (Type-A)
hard disk compartment Supports a 3.5-inch hard drive

Capacity 4TB / 8TB / 16TB
Typical power consumption Diskless configuration: 32.3W

Disk configuration: 44.5W

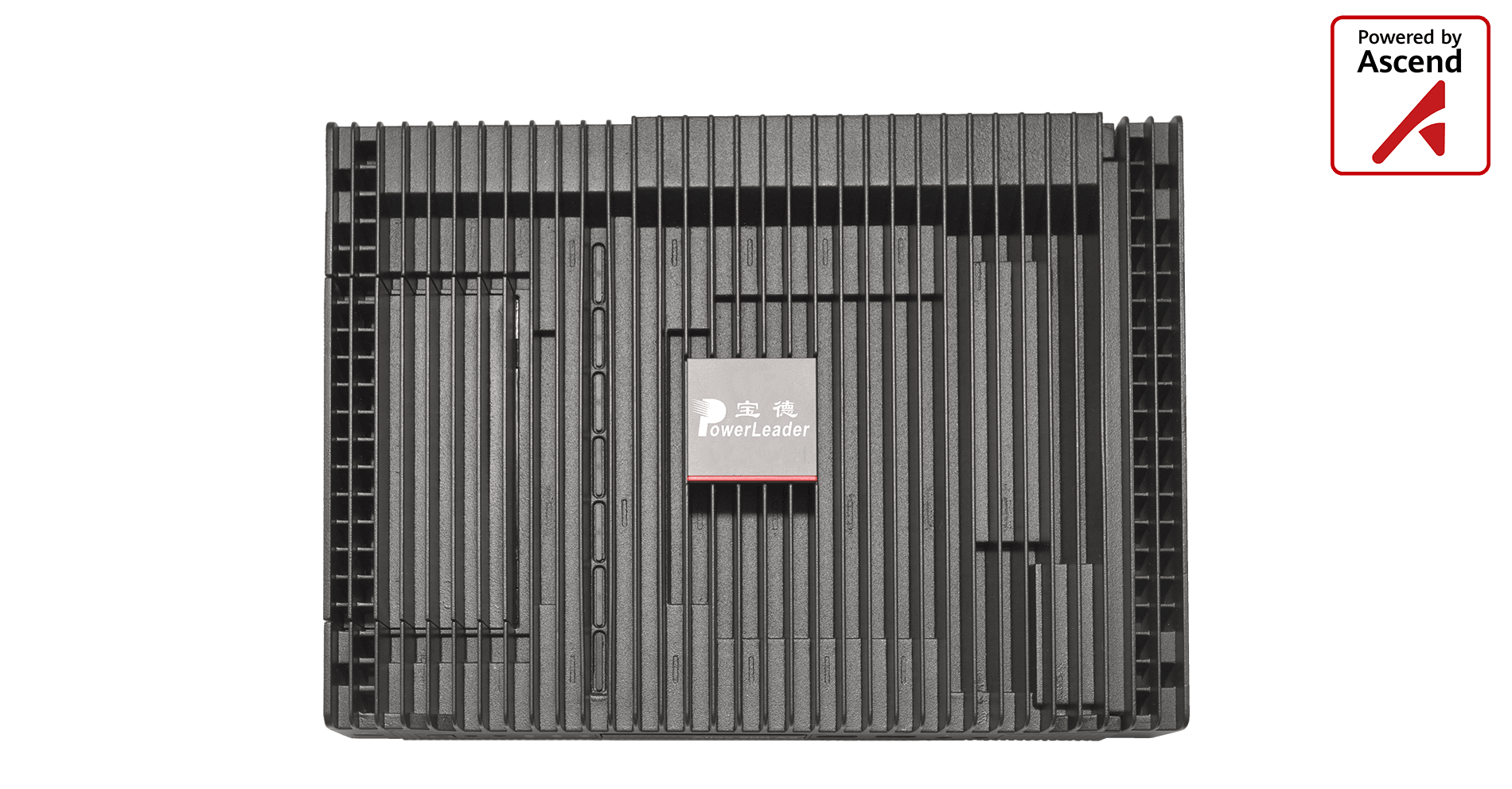

Heat dissipation method Fanless natural cooling
Working temperature -40°C ~ 60°C（-40℉～+140℉）
structure size Diskless configuration:

294 mm (length) * 220 mm (width) * 45 mm (height)

Disk configuration:

414 mm (length) * 220 mm (width) * 45 mm (height)
