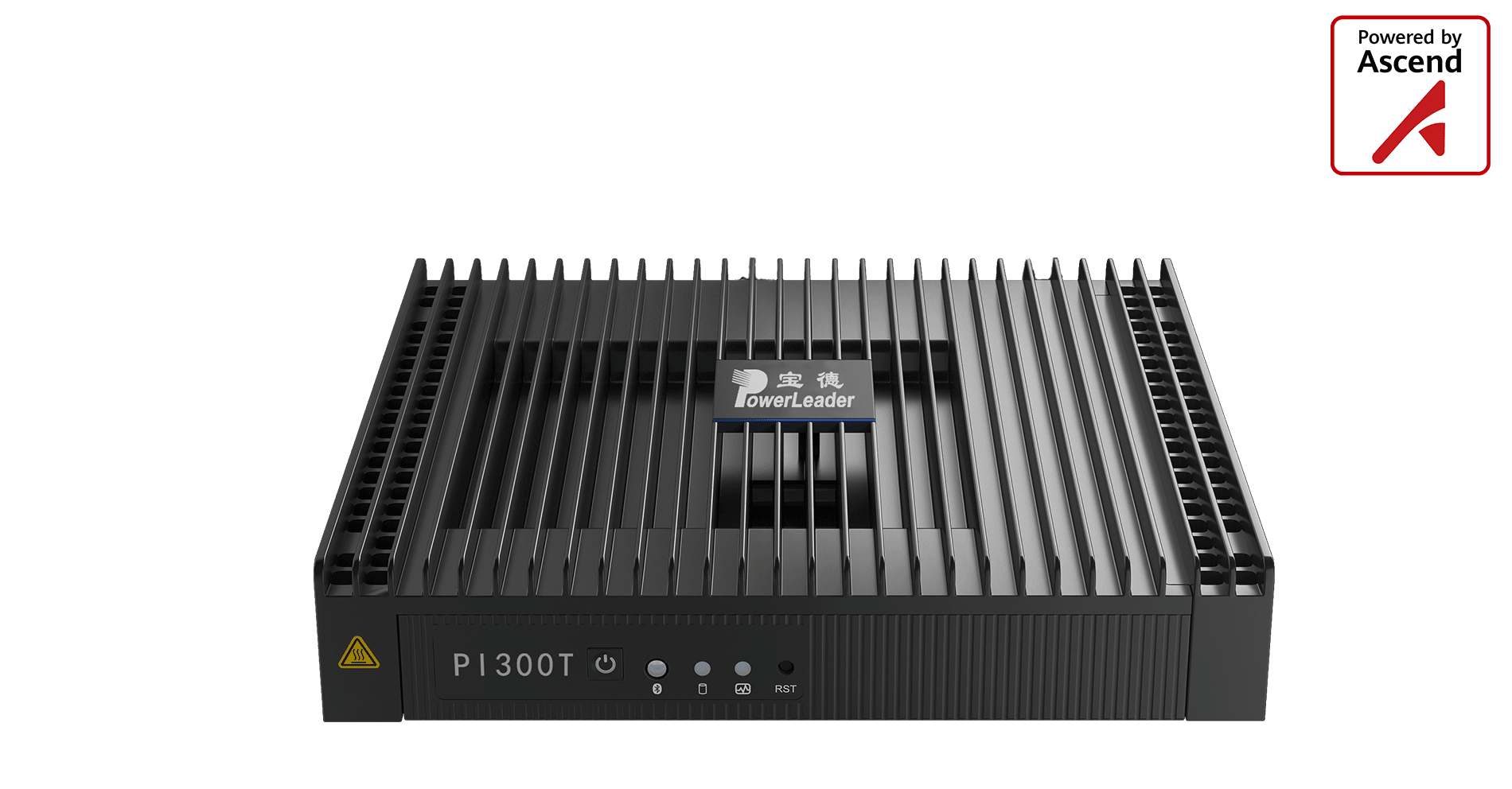

Baodeziqiang® Intelligent Station PI300T

Call for Price

Categories: , ,

PI300T smart station is a product for edge applications. It has the characteristics of super computing performance, small size, strong environmental adaptability, easy maintenance and support for cloud-edge collaboration. It can be widely deployed in edge environments to meet the needs of security, transportation, community, Application requirements in complex environmental areas such as parks, shopping malls, supermarkets, etc.

Strong environmental adaptability

Industry-leading edge products with integrated AI processing capabilities

Fanless cooling, supports outdoor operation from -40 ℃ to 70 ℃

Super computing performance

The size of the set-top box supports 22 TOPS INT8 computing power

Support 20 channels of high-definition video processing (1080P 25FPS)

Cloud-edge collaboration

Support LTE wireless transmission

Cloud-edge collaboration, real-time model updates

Device management and firmware upgrades can be unified in the cloud

Technical specifications

model PI300T
AI computing power 22/16 TOPS INT8

11/8 TFLOPS FP16
Memory specifications LPDDR4X, 8/4 GB, total bandwidth 51.2 GB/s
Codec capabilities Support H.264 hardware decoding, 20 channels 1080P 30 FPS

(2 channels 3840*2160 60 FPS)

Support H.265 hardware decoding, 20 channels 1080P 30 FPS

(2 channels 3840*2160 60 FPS)

Support H.264 hardware encoding, 1 channel 1080P 30 FPS

Support H.265 hardware encoding, 1 channel 1080P 30 FPS

JPEG decoding capability 1080P 256 FPS, encoding capability 1080P 64

FPS, maximum resolution: 8192*4320

PNG decoding capability 1080P 24 FPS, maximum resolution:

4096*2160
interface Network: 2 GE RJ45

Other I/O:

1 HDMI interface, 1 pair of 3.5 mm stereo input and output interfaces;

2 external and 1 internal USB2.0 interface (Type-A)
Typical power consumption Diskless configuration: 25W

Disk configuration: 40W
Working temperature Diskless configuration: -40ºC ~ 70ºC

Disk configuration: -40ºC ~ 60ºC
structure size Diskless configuration: 45 mm * 235 mm * 220 mm

With disk configuration: 45 mm * 355 mm * 220mm
