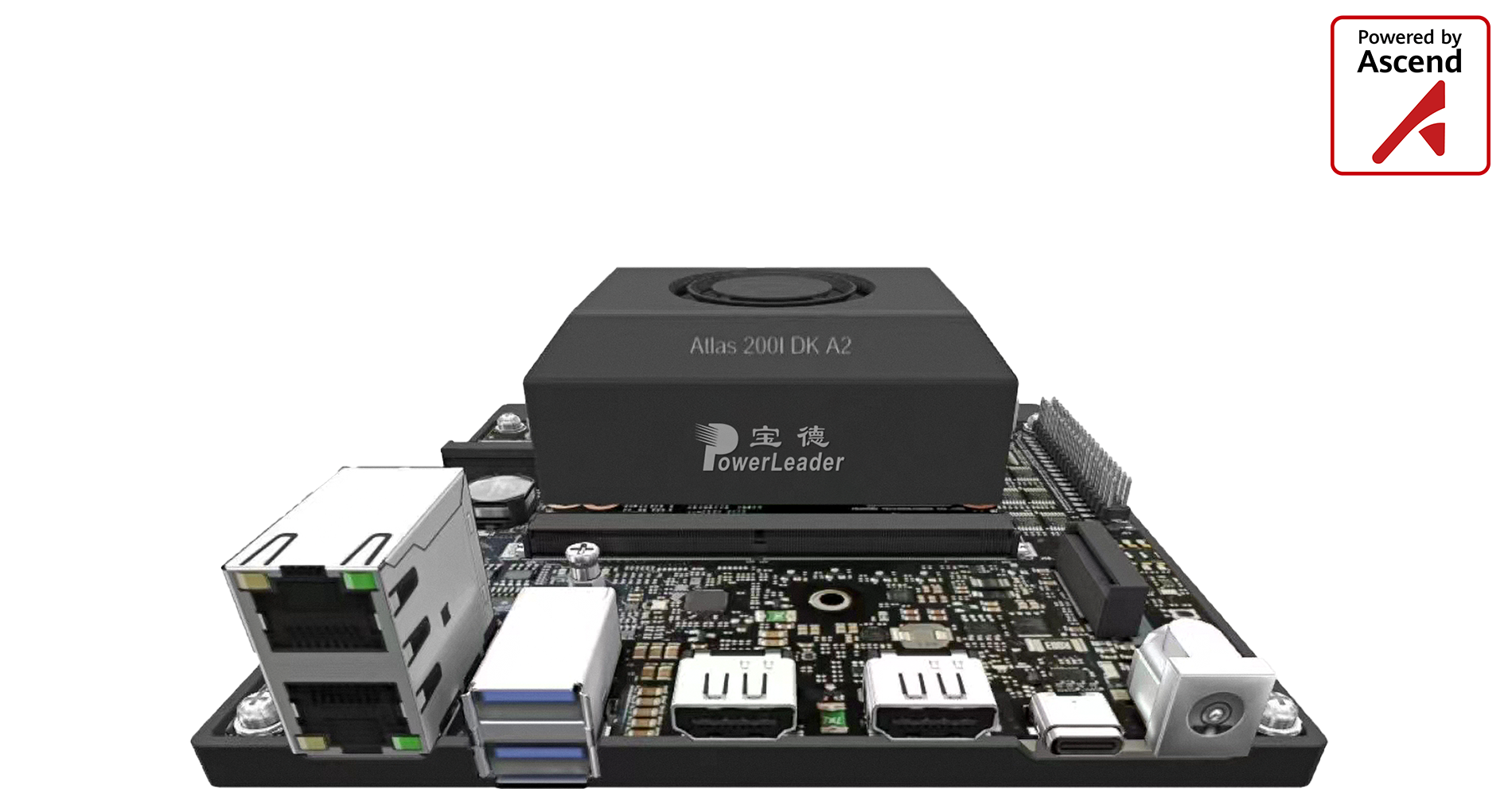

Atlas 200I DK A2 Developer Kit

Call for Price

The Atlas 200I DK A2 developer kit is a product for AI developers in algorithm verification and application development scenarios. It has the characteristics of rich hardware interfaces, rich reference codes and algorithm models, and full-process coverage of tools. It is suitable for individual developers, university teachers and students , used by industry engineers to meet the needs of scenarios such as AI technology learning, AI, teaching practice, creative application development, and industry algorithm verification.

Rich interfaces for easy hands-on use

More hardware interfaces, supporting RJ45 network port, HDMI, USB3.0, etc.

Provide reference for expansion accessories adaptation

Code examples are easy to learn and use

Provide end-to-end DEMO of smart cars, robotic arms, voice interaction, etc.

Provides hundreds of code reference samples such as visual analysis and speech analysis

Provide rich open source pre-training models

Efficient tools for minimalist development

Ready to use out of the box, run through the first sample in 30 minutes, and quickly complete application deployment in 2 hours

Supports the use of algorithm model adaptation tools in Windows environment

Technical specifications

model Atlas 200I DK A2
AI computing power 8TOPSINT8

4TFLOPS FP16

Memory specifications LPDDR4X, 4 GB, supports ECC
CPU computing power 4core* 1.0GHz
Codec capabilities Support H.264/H.265 hardware decoding, 20 channels of 1080P 30FPS, 2 channels of 4K75FPS

JPEG decoding 1080P512FPS, encoding 1080P256FPS, maximum resolution 16384×16384

Extension ports 2 MIPI-CSI51-pin connectors for camera modules

1 MIPI-DSI 51-pin connector

2 RJ45 network ports, supporting adaptive 100/1000M

2 HDMI interfaces

2 USB 3.0Type-A interfaces, compatible with USB2.0

1 USB 3.0Type-C interface

1 set of 40-pin expansion connector

Storage interface 1 MicroSD card interface

1x M.2KeyM connector, supports 1x NVMeSSD

Typical power consumption 24W
structure size 135mm (length)*120mm (width)*44mm (height)
